1. Product Description
KRAFTMAX Antifreeze IAT Concentrate is a traditional Inorganic Additive Technology (IAT) ethylene glycol-based antifreeze formulated to provide reliable protection against frost, overheating, and corrosion. Recommended for older generation vehicles requiring conventional coolant technology.

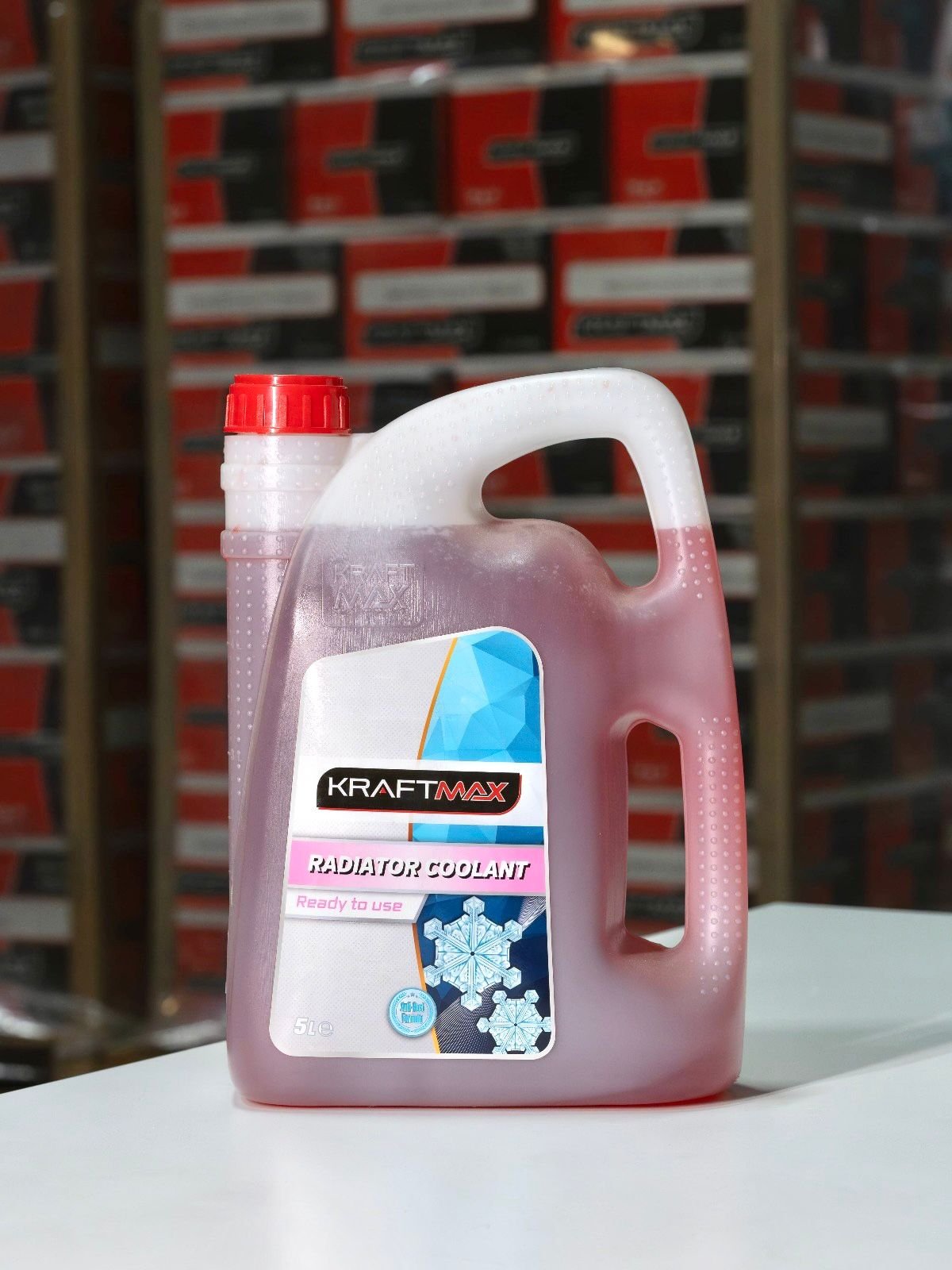

KRAFTMAX Coolant IAT Ready to Use is a pre-diluted, ethylene glycol-based coolant formulated with IAT. It provides reliable protection against frost, overheating, and corrosion without the need for further dilution.
2. Advantages
• Provides long-lasting protection against freezing and overheating (Antifreeze IAT Concentrate)
• Ready to use – no mixing required (Coolant IAT Ready to Use)
• Protects metal surfaces against corrosion, rust, and scale formation
• Compatible with aluminum and other alloy engine components
• Safe for hoses, gaskets, and sealing materials
• Ensures efficient heat transfer in the cooling system
3. Applications
• All gasoline and diesel engines requiring IAT technology
• Passenger cars, light commercial vehicles, and trucks
• Suitable for radiators and cooling systems with mixed metal components
4. Typical Technical Properties
|
Property |
Antifreeze IAT Concentrate |
Coolant IAT Ready to Use |
|
Appearance |
Green/Blue liquid |
Green/Blue liquid |
|
Density @20°C |
~1.120 g/cm³ |
~1.050 g/cm³ |
|
pH |
7.5 – 8.5 (50% dilution) |
7.5 – 8.5 |
|
Boiling Point |
>160 °C (undiluted) |
approx. 105 °C |
|
Freezing Point |
-36 °C (50% dilution) |
-25 °C (ready to use) |
5. Dosage & Treat Rate
Antifreeze IAT Concentrate: Dilute with demineralized water before use.
• 33% Antifreeze : 67% Water → Freezing protection down to -20 °C
• 50% Antifreeze : 50% Water → Freezing protection down to -36 °C
Do not use concentrations above 70% or below 33%.
Coolant IAT Ready to Use: Use directly without dilution. Provides reliable frost protection down to -25 °C.
6. Packaging Options
Available in: 1 L, 3 L, 5 L, 20 L, 200 L, 1000 L IBC.
Private label option available on request.
7. Storage & Handling
Store in a cool, dry, and well-ventilated area. Avoid direct sunlight. Shelf life: 2 years in unopened original packaging.
8. Health & Safety
Refer to the Material Safety Data Sheet (MSDS) for complete guidance on handling, disposal, and safety precautions.
Note: The information provided is based on current knowledge and experience. It does not constitute a legally binding assurance of specific properties.
