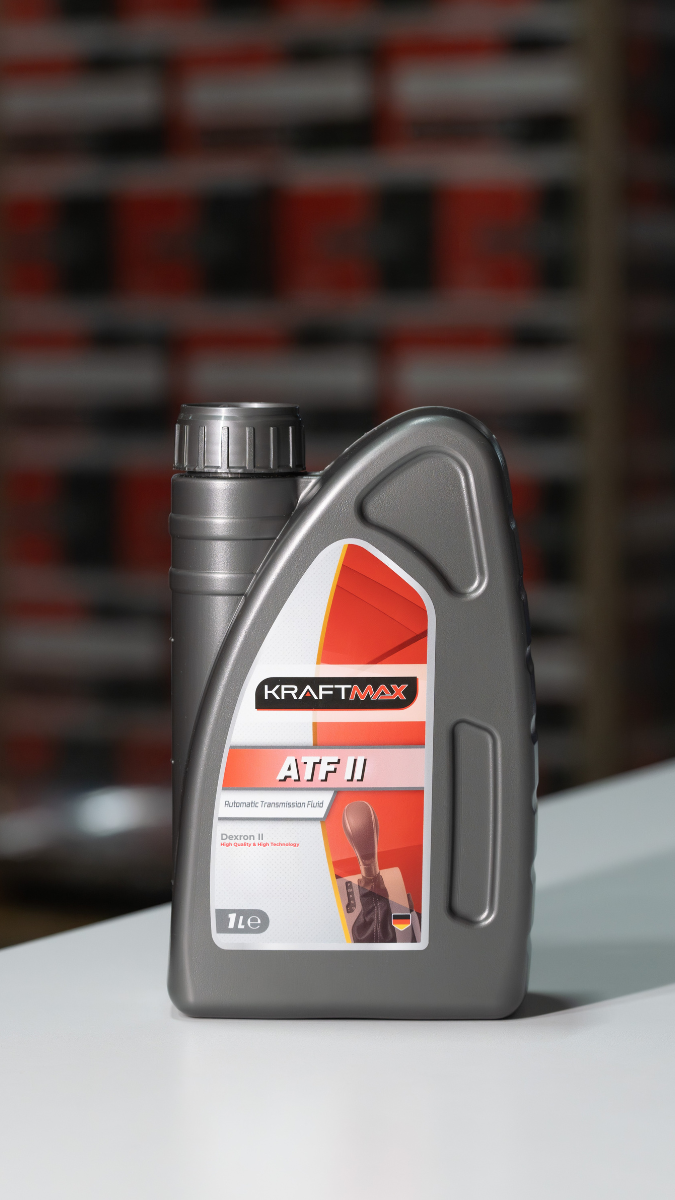

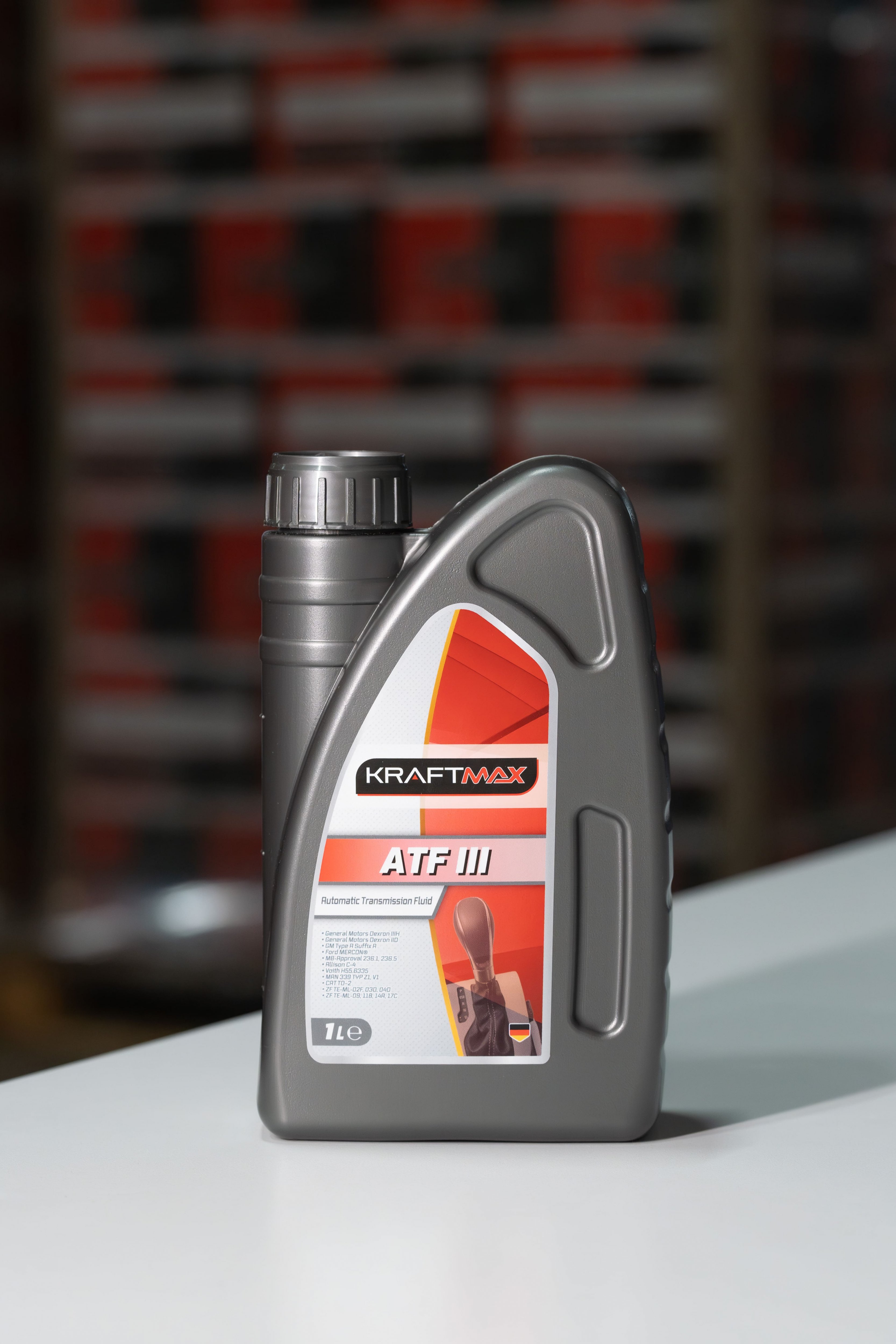

1. Product Description
ATF II-III is a high quality automatic transmission fluid formulated with premium base oils and selected additives. It ensures smooth gear shifting, excellent oxidation stability, and effective protection against wear and corrosion. Suitable for automatic transmissions and power steering systems where Dexron II or Dexron III fluids are
2. Advantages
• Smooth and reliable gear shifting
• Excellent low-temperature properties for cold climates
• Effective protection against wear, corrosion and oxidation
• Multi-purpose use in transmissions, torque converters and power steering
3. Applications
• Automatic transmissions of passenger cars and light commercial vehicles
• Power steering systems requiring Dexron II or Dexron III fluids
• Hydraulic systems and torque converters where such ATFs are specified
4. Performance Standards and Aprovals
|
Approval |
ATF II (Dexron II-D) |
ATF III (Dexron III) |
|---|---|---|
|
GM |
Dexron II-D |
Dexron III |
|
Ford |
Mercon |
Mercon |
|
Allison |
C-4 |
C-4 |
|
Caterpillar |
TO-2 |
TO-2 |
|
Mercedes-Benz |
MB 236.1 |
MB 236.5 |
|
MAN |
339 Typ V1 |
339 Typ Z1 |
|
ZF |
TE-ML 04D |
TE-ML 14A, 17C |
5. Asian Approvals
|
Approval |
ATF II (Dexron II-D) |
ATF III (Dexron III) |
|---|---|---|
|
Toyota |
Type T-II / T-III |
T-IV |
|
Nissan |
Matic D |
Matic J / K |
|
Honda |
ATF-Z1 |
DW-1 |
|
Hyundai / Kia |
SP-II |
SP-III |
|
Mitsubishi |
Diamond SP-II |
Diamond SP-III |
6. Typical Technical Properties (Range Overview)
|
Property |
ATF II |
ATF III |
|
Kinematic Viscosity @ 40°C, mm2/s, ASTM D445 |
33,5 |
34,0 |
|
Viscosity Index, ASTM D2270, Min. |
105 |
115 |
|
Copper Strip Corrosion (3h,100°C), ASTM D130, Max. |
1b |
1b |
|
Pour Point, °C, ASTM D97, Max. |
-38 |
-40 |
|
Flash Point, COC, °C, ASTM D92, Min. |
205 |
210 |
|
Density @ 15.6°C, g/ml, ASTM D4052 |
0,880 |
0,875 |
Disclaimer: The typical properties listed above represent average values and may vary within acceptable manufacturing tolerances. This information does not constitute a specification.
7. Packaging Options
Available in: 1L, 4L, 5L, 10L, 20L, 25L pail, 55L drum, 200-208L barrel, 1000L IBC
Private label and bulk delivery options available on request.
8. Storage & Handling
- Store between 0°C and 40°C in dry, well-ventilated conditions
- Avoid direct sunlight and ignition sources
- Shelf life: 5 years in original sealed packaging
9. Health & Safety
Refer to the Material Safety Data Sheet (MSDS) for complete guidance on handling, disposal, and safety precautions.
Note: The information provided is based on current knowledge and experience. It does not constitute a legally binding assurance of specific properties.
